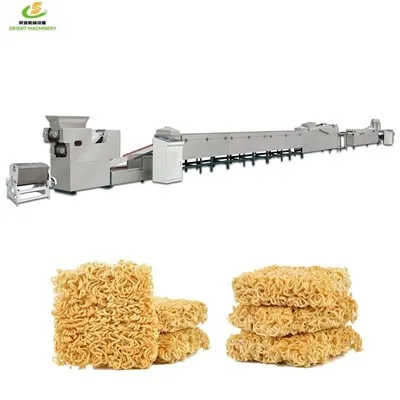

Instant Noodle Production Line

First 12 Last
Types of Instant Noodle Machine
1

Fully Automatic Machines

These machines automate the entire process from kneading dough to packaging, ensuring consistency and reducing labor costs.

2

Semi-Automatic Machines

This type requires some manual intervention but automates key processes for efficiency.

3

Small Scale Machines

Designed for home use or small businesses, these machines have a compact design yet offer high performance.

4

Multi-Functional Machines

Capable of producing various types of noodles, including fried and non-fried options, to adapt to market demands.



Technical Specifications of Instant Noodle Machine



Item No.

Installed Power

Power Comsumption

Capacity

Dimension

DLG-100

150KW

105KW

8000~11000 pcs/8hrs

25*1*1.35m

DLG-150

170KW

120KW

20000 pcs/8hrs

38X1.2X1.35m






Technical parameters of Instant Noodle Machine Production Line



Equipment

Specification

Flour Mixing Machine

Rotating paddle speed:140r.p.m

Power:3Kw

Capacity:15-20kg/one time

Roller Pressing Machine

Width:210mm

Capacity:150kg/h

Power:4kw

Dimension（L*W*H):2100*600*1300mm

Boiling Machine

Effective convey length:5m

Convey speed: Infinite variable speed

Boiling time :70～90 seconds

Boiling Temperature:96～98℃

Capacity:180kg/h

Power:60Kw

Dimension:8000*440*1250mm（2000x4 mm）

Cutting Machine

Cutting Knife Diameter：￠80mm

Speed：28round/minute

Fryer

Speed: Adjustable

Temperature: 150℃

Frying time: 60～90 seconds

Power: 41.5Kw

Oil consumption ratio：20～22%

Dimension:4000*600*1300mm

Cooling Machine



Effective length: 5m

Convey speed: Adjustable

Power: Supplied by fryer

Cooling power: 3×0.06kw

Gas release quantity: 3×28m3/min

Dimension: 5000*500*1100mm



Payment terms





30% T/T in advance , 70% balance before shippment after inspection.

Packing and Shipping





Plastic film as inner packaging



Formal export packaging or packaging according to customer requirements



Shipping by sea, land or rail.
Choose the best shipping method according to the actual situation or customer requirements

Energy-Efficient Technologies in Instant Noodle Machine



New Cooking Equipment

Look for technologies that are energy-efficient that reduce energy needs during the cooking and drying phases, thus using less energy and cutting back on costs.





Improved Thermal Insulation

Improve the insulation which is used in the noodle processing machinery in order to reduce the amount of heat loss and increase the effectiveness of the thermal energy consumed.





Automatic Control Systems

Introduce automatic control systems that function to ensure optimal performance of electric energy with minimum wastage.




Company Video




FAQ

Q: What is an Instant Noodle Machine?

A: An automated device that prepares instant noodles quickly, often combining cooking and serving processes.

Q: How does an Instant Noodle Machine Work?

A: Typically, it heats water, adds instant noodle blocks and seasoning packets, then cooks and mixes them until ready to serve.

Q: Are There Different Types of Instant Noodle Machines?

A: Yes, ranging from simple countertop models for home use to larger commercial-grade machines for restaurants and cafeterias.

As one of the most professional instant noodle production line manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to buy durable instant noodle production line for sale here from our factory.
