Pregelatinized Starch Processing Machine

Pregelatinized Starch Processing Machine

The Pregelatinized Starch Processing Machine is a continuous processing equipment for rapidly converting native starch into pregelatinized starch that can be dissolved in cold water. It is suitable for mass production scenarios in food, pharmaceutical, papermaking, and textile industries.

High pregelatinization efficiency: Utilizing a twin-screw extrusion curing process, high shear and precise temperature control ensure complete starch breakdown, resulting in a stable pregelatinization rate of over 95% in the finished product.

Food-grade materials: 304/316 stainless steel structure, corrosion-resistant and easy to clean.

High degree of automation: PLC system monitors key parameters in real time, reducing reliance on manual labor.

Capacity Range: 100–1200 kg/h

Different grades of stainless steel (304 / 316)

Twin-screw/single-screw process optional

Output particle size and moisture content can be adjusted according to industry requirements

Drying system options: hot air drying / microwave drying / combined type

Touchscreen language and automation level customizable

Complete production line: feeding, extrusion, drying, crushing, and screening equipment

Mixer flour

Dimensions: 1.1 × 0.8 × 1.4 m
Motor Power: 4 kW
Speed: 400 rpm
Batch Capacity: Approximately 30 kg per batch (mixing for 5–6 minutes)

Function: Used to thoroughly mix powdered ingredients with water.

Features:

Made of 1.5 mm stainless steel, corrosion-resistant and easy to clean.

Open-handle discharge port to prevent residue and leakage.

High-speed mixing efficiency, resulting in superior mixing uniformity compared to low-speed models.

Double-screw extruder

Dimensions: 2.6 × 1.0 × 1.3 m

Total Power: 37 kW (including main unit 22 kW, feeder 0.75 kW, cutter 1.5 kW, electric heater 10 kW)

Screw Diameter: Φ65 mm

Function: Extrudes, matures, and shapes mixed raw materials; different shapes can be produced by changing the molds.

Features:

The screw is nitrided with 38CrMoAl, with a hardness of 60 HRC; the barrel hardness is 55 HRC.

The gearbox has a forced lubrication structure, ensuring stable operation.

All motors are equipped with frequency converters for precise process control.

The molds are easy to change, suitable for various product specifications.

Dryer Oven machine

Dimensions: 5.4 × 1.3 × 1.8 m
Heating Power: 27 kW
Motor Power: 0.75 kW
Conveyor Speed: 0.1–10 m/min
Temperature Range: 20–200℃
Structure: Three-layer structure, 5 m per layer, effectively saving space and increasing drying area.

Features:

Adjustable conveyor belt speed to control drying time.

Electric heating element with automatic temperature control system.

Both the outer casing and conveyor belt are made of stainless steel, meeting food processing requirements.

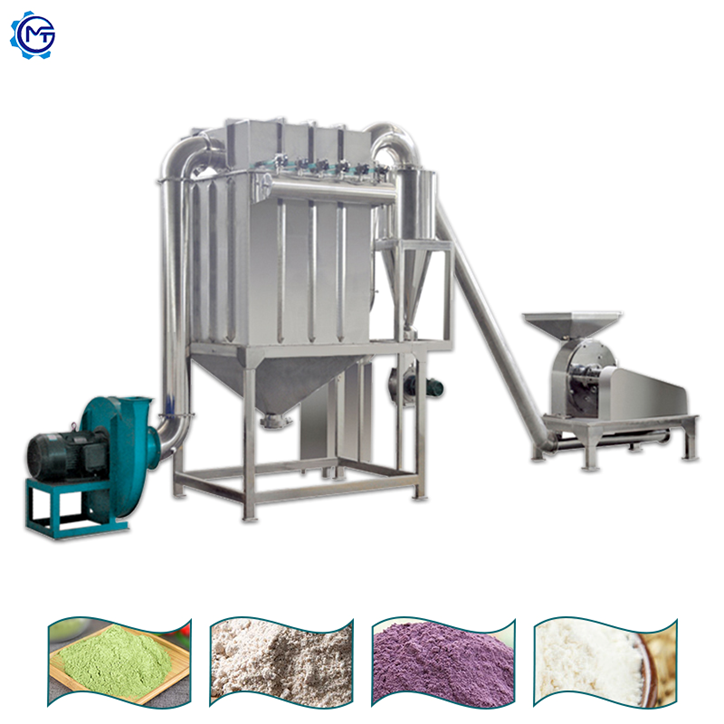

Pulse grinder

Features:

Constructed entirely of stainless steel, hygienic and durable.

Equipped with a draft fan and dust collection system to reduce dust and maintain a clean environment.

Different particle sizes can be obtained by changing the screen, suitable for various food processing applications.

This equipment can continuously process natural starch into instant pregelatinized starch, which is suitable for mass production of food.





Our equipment has been used by customers in many countries.

Russia

Iran

Packaging Method: The main unit is rust-proofed + thickened film encapsulation + export-grade wooden crate for securing.

Electronic control cabinets, explosion-proof components, etc., are all individually reinforced in packaging.

Vulnerable parts are individually numbered and packed to ensure direct installation upon arrival.

Transportation Method: Supports sea freight (FCL/LCL), land freight, and air freight.

Provides a complete set of export documents (CO, Form E, packing list, invoice, etc.).

Can provide port-to-port and door-to-door services (FOB/CIF/DDP).

15+ years of experience in R&D and manufacturing of pregelatinized starch equipment, exported to over 30 countries.

OEM/ODM support is available; complete production line solutions can be customized according to capacity, formulation, and process flow.

With our own machining center and assembly workshop, core spare parts production can be completed within 48 hours.
