Stir mixed corn flour alone or maize germ mixed with nutrition additives evenly with a certain amount of water. Choose different
model according to different output requirements.

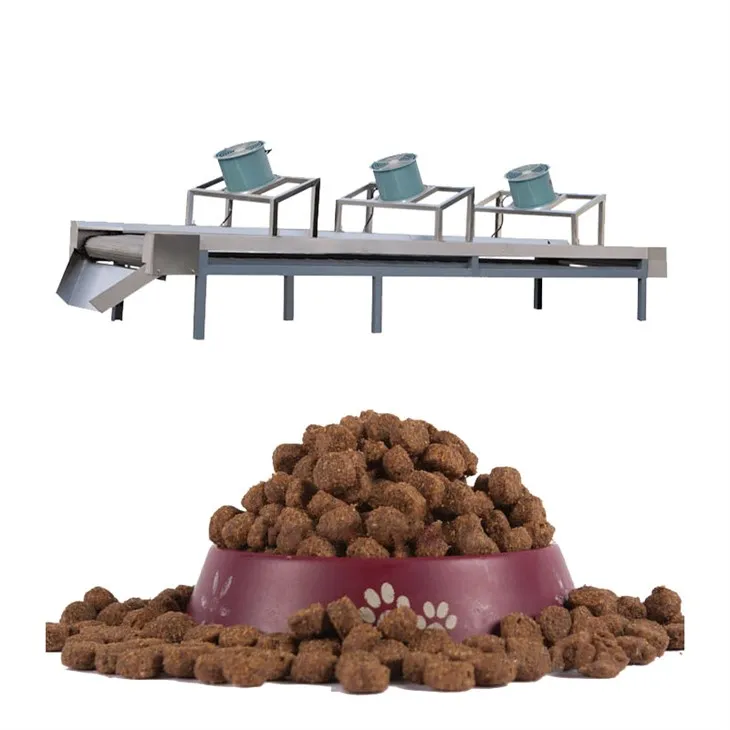

Pet dog food machine Brief information:
Pet dog food processing
line is specially designed to produce daily food and healthy food for every kind of pet dog/cat,fish,frog,tortoise etc.Adopting preconditioning system for raw material ,it can increase capacity and reduce power
consumption.
(1) The Twin screws pet food extruder is researched and developed by Jinan Shengrun Machinery Company based on the foreign advanced technology.
(2) The Twin screws pet food extruder produce the pet food used of meat, cereals, grain, vitamins and minerals. The general grains, such as soya bean meal, corn meal, cracked wheat, and barley, are often used to improve the consistency of the products.
(3)In addition, Twin screws pet food extruder can be applied to process the bait for aquarium fish, pets` food, porket feed, puffed feed for young animals, livestock and poultry as well as other puffed food of high quality.
Fish feed making machines floating fish feed mill pellet machine feed extruder processing machines
Product Description
fish feed making machines floating fish feed mill pellet machine feed extruder processing machines
Fish food processing equipment mainly uses meat powder, fish power, bone power, corn powder, soya powder etc. Through the high temperature heating and high pressure from twin screw extruder to form the final pet food pellet, such as dog food, cat food, fish food, shrimp food etc. Different size and shape can be adjusted by changing the dies. Final product has high maturation and easy for pet to digestion and adsorption.The details for the line are as below: Pet food machine technology: Material mixing with water → material conveying → extruding → drying → oil spraying → flavoring → cooling → Storage
Technological Process Raw Materials Configuration

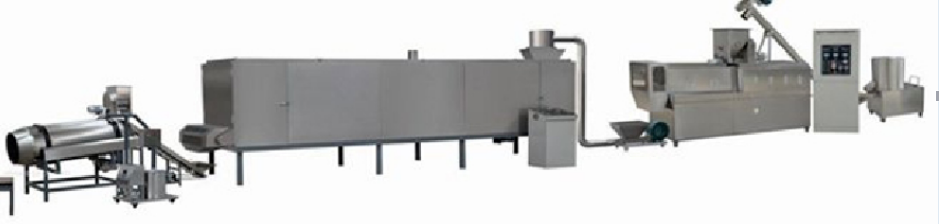

Mixing→ Conveyance→ Double-screw extruder→Air conveyer→Multi-layer oven→→Flavoring line→cooling machine→Hoister→Automatic packaging machine
|
Model
|
Installed Power
|
Power consumption
|
Output
|
Size
|
|
SY70
|
128KW
|
90KW
|
120-150KG/H
|
25000*1500*2200MM
|
|
SY75
|
186KW
|
140KW
|
150-200KG/H
|
24000*2000*2800MM
|
Product Details

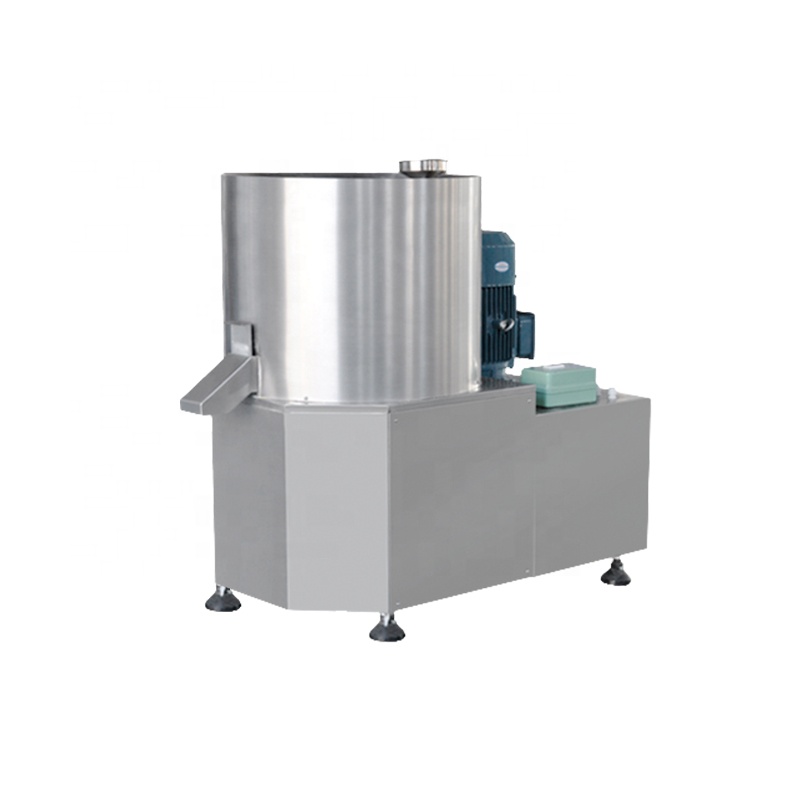

Mixer Flour

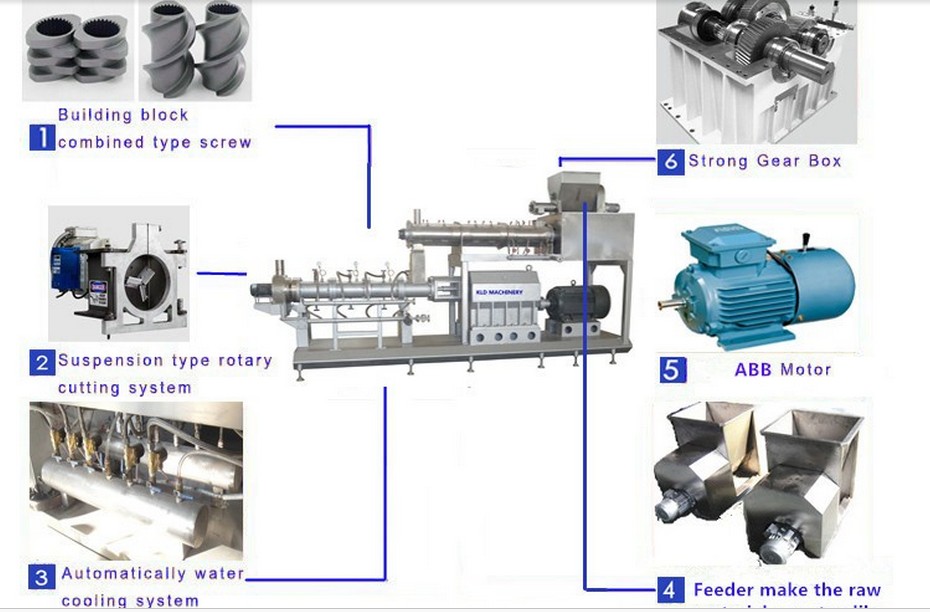

Extruder Machine
Select different extruder model based on clients' raw materials and output capacity requirement. With the help of special
control cabinet, extruder is able to extrude the raw material under different temperature & pressure, and produce products.
The shapes of products can be changed by changing the modules in extruder.
control cabinet, extruder is able to extrude the raw material under different temperature & pressure, and produce products.
The shapes of products can be changed by changing the modules in extruder.

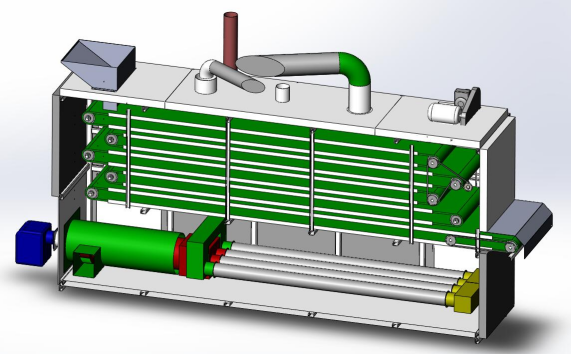

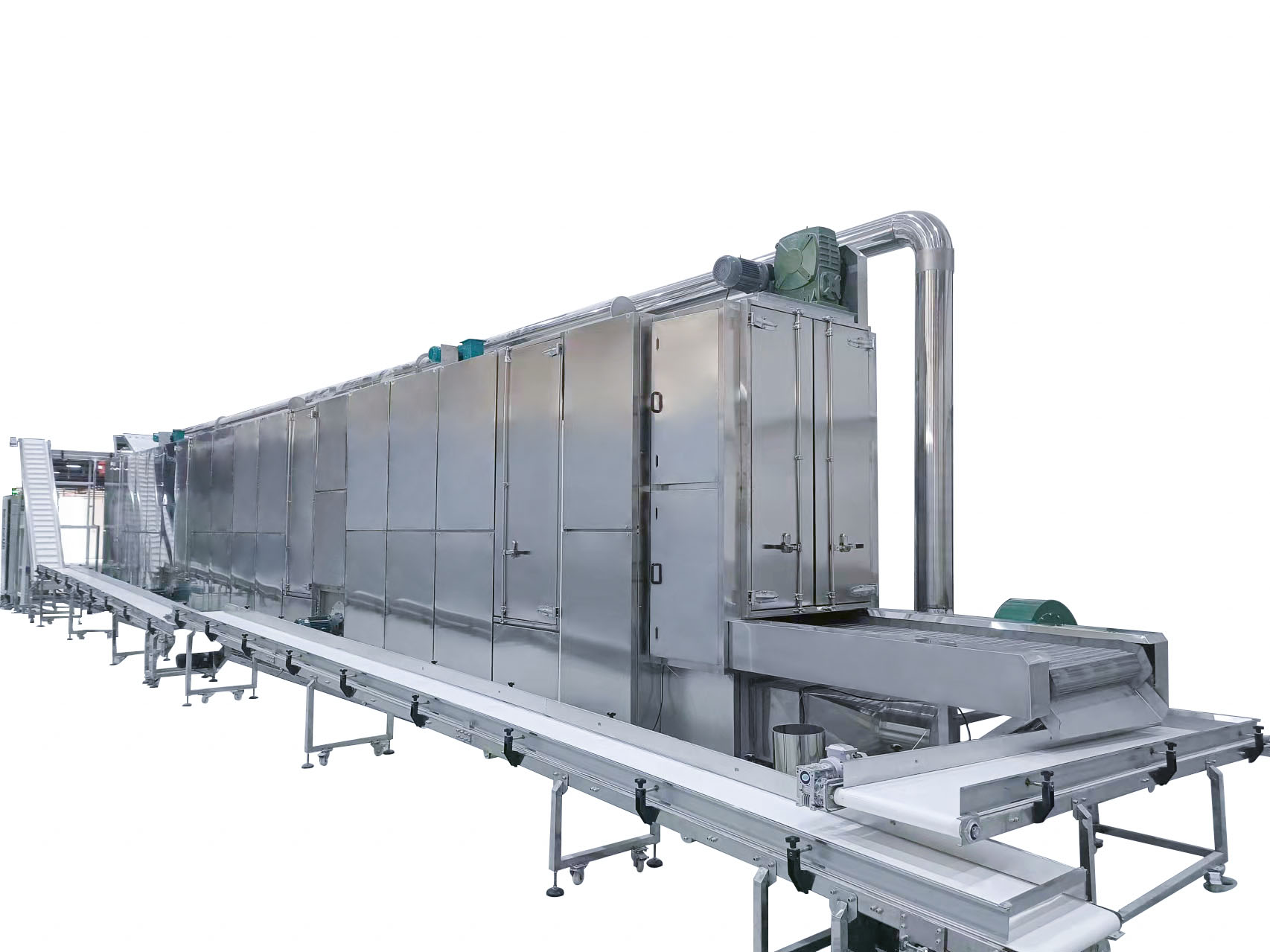

Fryer machine
Dry semi-finished products. It is the most common dehydration plant for puffed food. It includes a belt dryer and some in-built
heating devices to carry out drying by means of electricity, vapor, diesel or gas. The drying temperature and drying time can be
controlled
heating devices to carry out drying by means of electricity, vapor, diesel or gas. The drying temperature and drying time can be
controlled

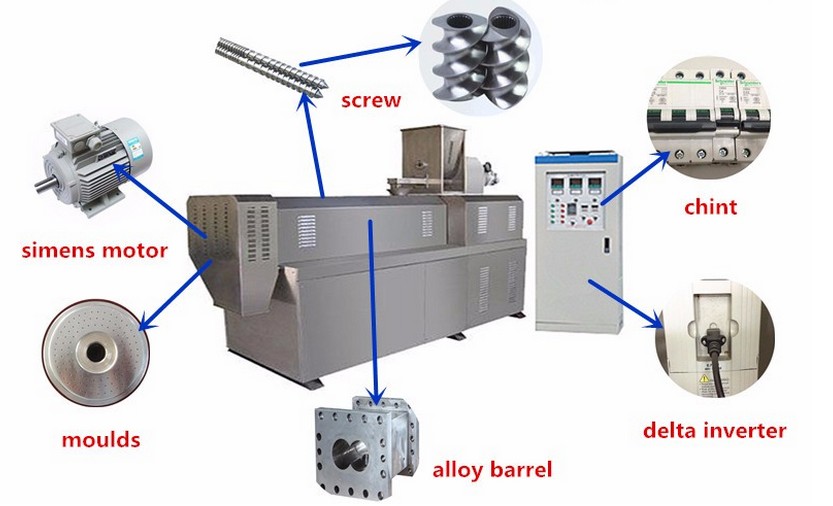

The structure of the twin screw includes the feeding bucket, control cabinet, rotary cutting, main motor, rotary cutting click, feed motor, oil pump, feed frequency conversion, rotary cutting frequency conversion, spindle frequency conversion, reducer, distribution box, shelf, line plate, screw and barrel.Screw material: 38 nut aluminum barrel material: 45 steel outer sealing
plate: SS201 shelf: carbon steel
Our designers can also help you design the placement of machines in your factory according to the space of your factory.
